V12S

Compact linear lighting profile

  • ColorCORE
  • EQ
  • RGB

V12S

Compact linear lighting profile

  • ColorCORE
  • EQ
  • RGB
  • IP50
  • IP67
  • 5 Year Warranty
  • L70B10
  • 2200k to 4000k
  • 95CRI
  • 12W/m
  • Cover OPX Clear
  • Surface mounted
  • 12x11mm linear lighting profile
  • OPX™ diffuser
  • Custom made lengths from 105mm to 2005mm
  • Interior IP50 or exterior IP67 rated water resistant options
  • Suited to joinery
  • Fixed or rotation mount options
  • PowerTHRU CLICK-CONNECT cabling for long runs up to 12m (2 x 6m in parallel)
  • Dimmable 24VDC drivers in 0-10v, DALI or PHASE
  • ColorCORE® Premium ≤95Ra, 2-Step 2200-4000K, ≤1300 lm/m excl LOR
  • EQ™ ≤90Ra, 3-Step 2700/3000/4000K LEDs, ≤1050lm/m excl LOR
  • RGB LEDs provide at 14.4 W/m ≤572lm/m
Dimensions
Dimensions
Downloads
Accessories
Accessories

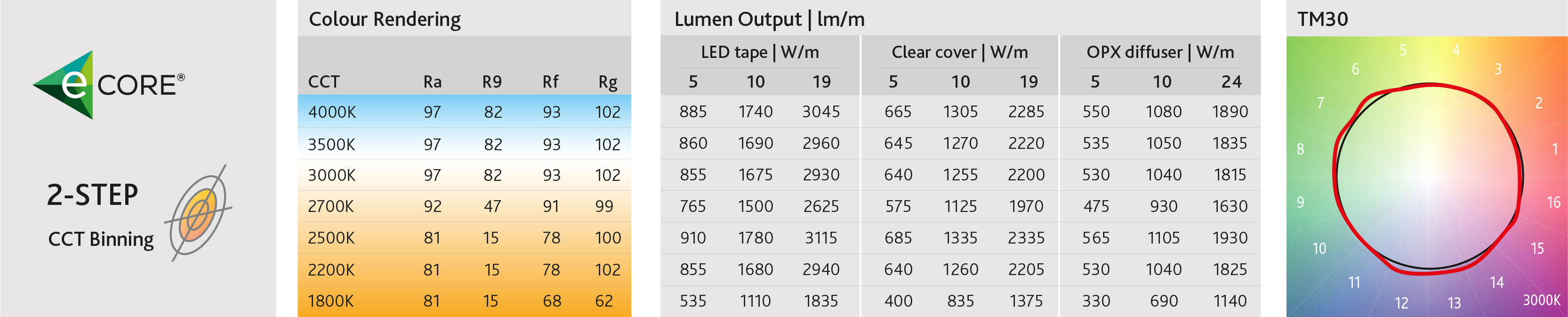

LED Data

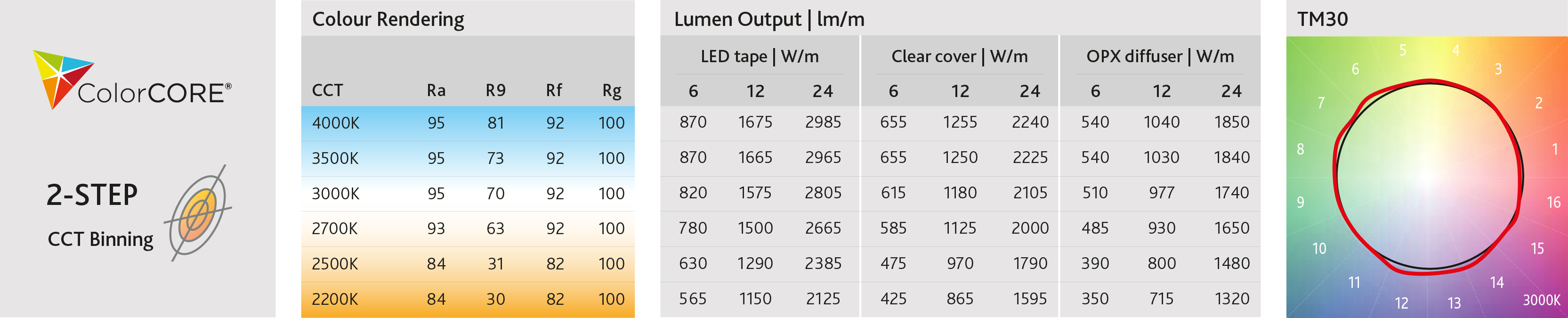

ColorCORE Vector V12S EQ Vector V12S RGB Vector V12S
Specification Codes
Specifications
Standard Lengths
V12S
Wiring & Drivers
Drivers Wiring
Certification Standards
  • EN/IEC 60598-2-1:1979, AMD1:1987 Luminaires used in conjunction with EN/IEC 60598-1:2014, AMD1: 2017
  • BS EN 62031:2008, AMD1:2012, AMD2:2014, AMD2:2015 LED Modules for general lighting
  • BS EN 60598-1: 2015 (Clause 9), BS EN 60529: 1992 + A2: 2013 Degree of protection provided by enclosures
  • MET Certified US/CA E114422
  • UL 2108, Low Voltage Lighting Systems, First Edition
  • UL 8750, Light Emitting Diode (LED) Equipment for Use in Lighting Products, Second Edition
  • CSA C22.2 No. 250.0-08, Canadian National Standard for Luminaires, First Edition
  • Member of the LIA
  • ISO 9001 Member
  • CE
  • Made in Britain
  • MET Safety Mark

Certification
