Vero I

36mm width, OPTIC Lensed linear profile

In-Ground IP68

    Vero I

    36mm width, OPTIC Lensed linear profileIn-Ground IP68

      • Vero I
      • Vero I
      • Vero I
      • Vero I
      • Vero I
      • Vero I
      • Vero I
      • Vero I
      • 24VDC Constant Voltage
      • Suited to upward grazing of textured surfaces and exterior walls
      • 40° GRAZE / 55° WASH / 100° FLOOD
      • Walkover and light-traffic use (5kN static load)
      • Exterior IP68 | Impact rating IK09
      • Optional anti-glare louvre
      • Lengths of 210mm, 510mm, 610mm and 1010mm
      • Dimmable 0-10v/DALI/TRIAC 24VDC driver options
      • PowerTHRU connector for long linear runs
      Dimensions
      Vero I
      Downloads
        CAD Drawings
      Accessories
      Vero I

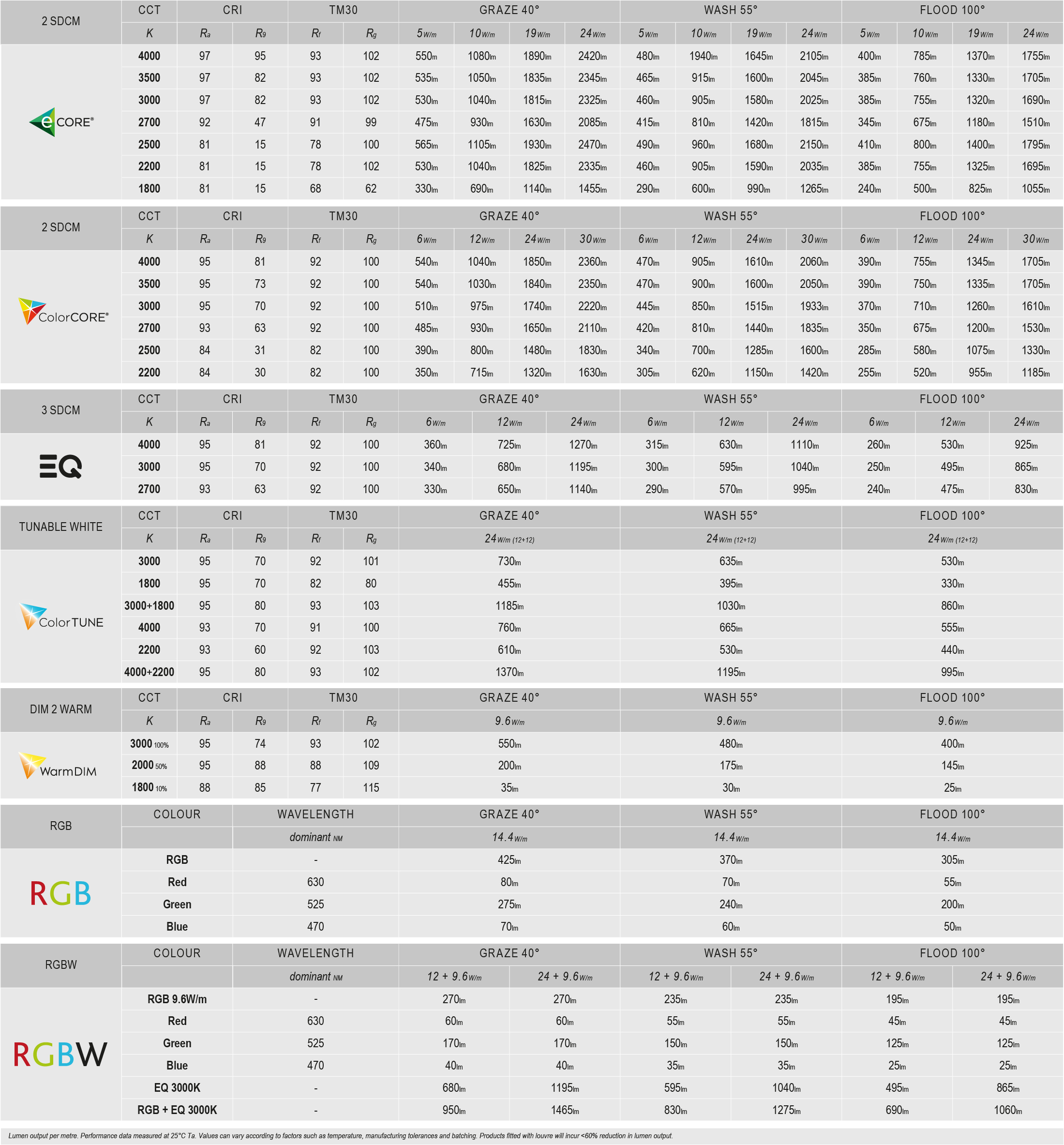

      LED Data
      Vero I Vero I

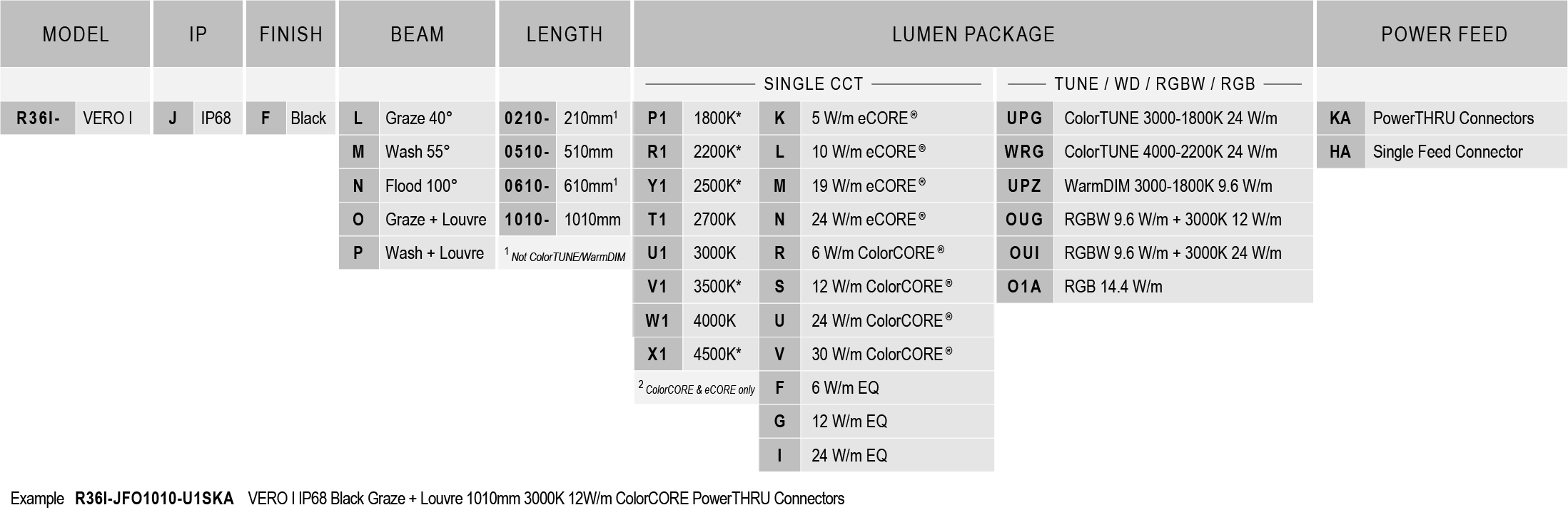

      Specification Codes
      Vero I
      Wiring & Drivers
      Vero I Vero I
      Certification Standards
      • UKCA: EE(S)R, ERP R, RoHS R
      • CE: LVD, ERPD, RoHS
      • BS EN 60598-1: 2015 (Clause 9) BS EN 60529:1992 + A2: 2013 Degree of protection provided by enclosures.
      • BS EN 60598-2-1 AMD1:1987 Luminaires used in conjunction with EN/IEC 60598-1:2014, MD1: 2017.
      • BS EN 60598-2-13 used in conjunction with IEC 60598-1:2014 / EN 60598-2-13 + 1:2012 used in conjunction with EN 60598-1:2015.
      • BS EN 62262: 2002 (clause 6 only) using test apparatus as described in BS EN 60068-2-75:1997 Degrees of protection provided by enclosures.
      • Vero I
      • Vero I
      • Vero I
      • Vero I

      Certification
