V36S OPTIC

Lighting profile with optical lens

  • ColorCORE

V36S OPTIC

Lighting profile with optical lens

  • ColorCORE
  • IP50
  • IP64
  • 5 Year Warranty
  • L70B10
  • 2700k to 4000k
  • 95CRI
  • 500mA
  • Inline Transverse
  • Surface mounted
  • 36X42mm linear lighting profile
  • NARROW 18°, WASH 37° or GRAZE 18° x 45° lenses
  • Optional anti-glare louvre in transverse or inline orientation
  • Interior IP50 or exterior IP64 rated water resistant options
  • Suited to wall grazing, wall washing and display-lighting applications
  • Lengths of 305mm, 600mm, 900mm and 1190mm
  • Dimmable 350mA or 500mA drivers with options for 0-10v/DALI/DMX dimming
  • Output at 500mA ≤3300lm/m excl LOR
  • 60W/m @500mA, 40W/m @350mA
  • ColorCORE® CRI ≤95Ra, 3-Step SDCM LEDs, 2700K-4000K
Dimensions
Dimensions
Downloads
Accessories
Accessories
LED Data
Vector V36

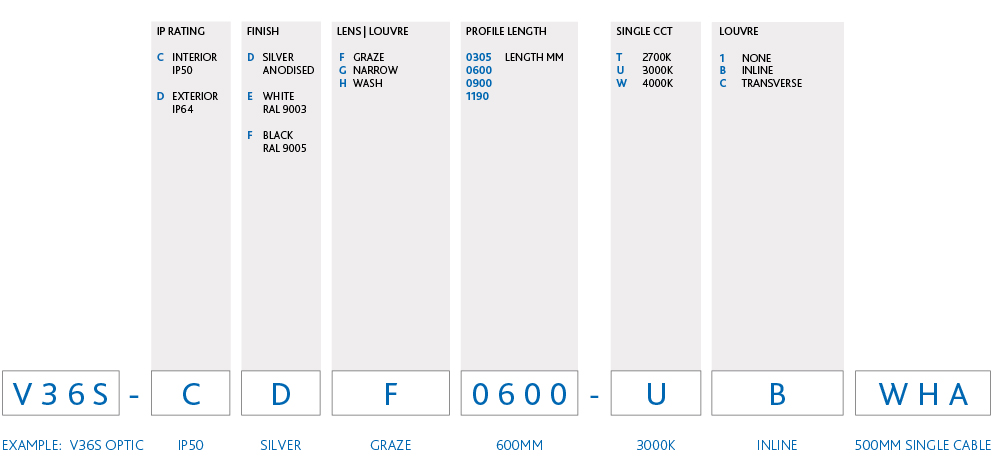

Specification Codes
V36S Optic
Wiring & Drivers
Drivers Wiring
Certification Standards
  • EC 60598-2-1:1979 + AMD1:1987 Luminaires used in conjunction with IEC 60598-1:2014 / EN 60598-2-1:1999 EN60598-1:2015
  • BS EN 62031:2008, AMD1:2012, AMD2:2014 LED Modules for general lighting
  • BS EN 60598-1:2008+A11 (Clause 9.2.1 & 9.2.5 & 9.2.2) + EN60529: 1992 + A1 + A2 Degree of protection provided by enclosures
  • MET Certified US/CA E114422
  • UL1598/CSA C22.2 No. 250.0-08, Third Edition, Luminaires, September 17, 2008
  • UL8750, Second Edition, Light Emitting Diode (LED) Equipment for Use in Lighting Products, September 15, 2015
  • CSA C22.2 No. 250.13-17, Third Edition, Light Emitting Diode (LED) Equipment for Lighting Applications, October 2017
  • Member of the LIA
  • ISO9001 Member
  • CE
  • Made in Britain
  • MET Safety Mark
